פנס חכם מבוסס לד

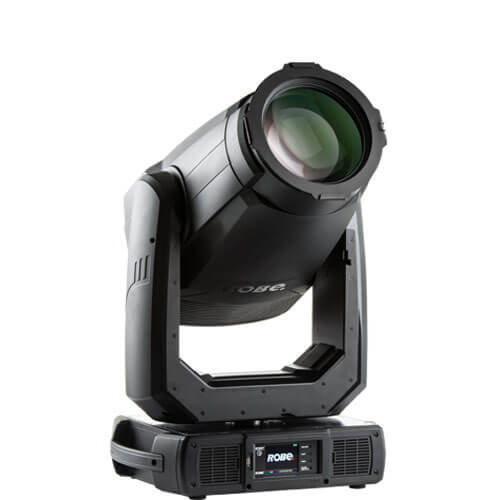

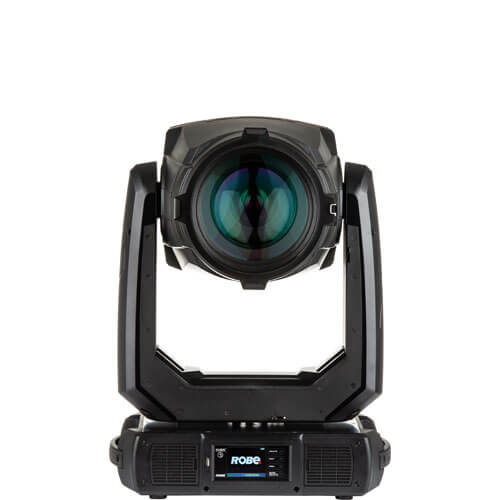

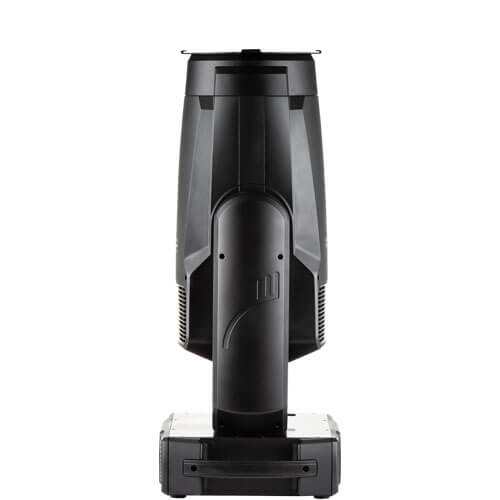

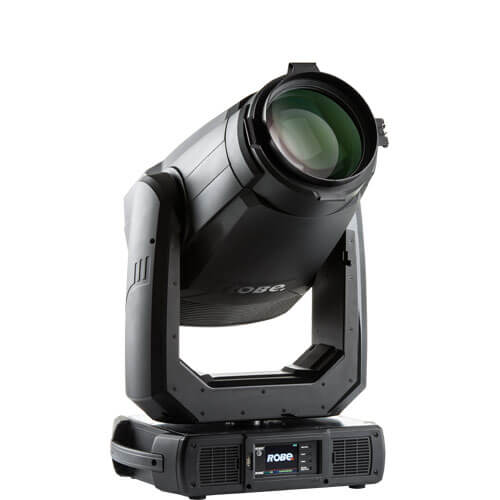

Robe- T2 Profile

מפרט טכני

• כללי

• יצרן: Robe
• צבע גוף: Black

• חשמל

• מתח עבודה: 100-240 V, 50/60 Hz
• הספק כולל: max. 1150 W

• מקור אור

• סוג נורה: MSL™ 850 W Multi-Spectral LED engine
• עוצמת הארה: up to 17.600 lm
• אורך חיי נורה: L70/B50 @ 40.000 hours
• CRI: CRI: 95, CRI R9: 91, TM30-18 Rf: 93, TM30-18 Rg: 103, TLCI: 94
• זוית פיזור: 5° - 55°, covers favoured field angles of most Theatre and TV lights

• מידות

• רוחב: 483mm
• גובה: 802mm
• עומק: 335mm
• משקל: 36.9kg

• שליטה

• שליטה: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
• שליטה אלחוטית: Wireless CRMX™ technology from Lumen Radio - on request
• מצבי הפעלה DMX: DMX Protocol modes: 3 | Control channels: 52, 36, 56
• דימר: L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

• סביבת עבודה

• דירוג IP: IP20

• תקינה

• אישור בינלאומיים: CE | cETLus

• פרמטרים Moving Light

• איריס: Motorized, stepless, pulse effects up to 3 Hz
• פרוסט: very light 1° for instant softening of the projected gobo or framing shutters and medium 5° for even wash, both selected specifically for theatre and TV use, both frosts replaceable via magnetic holder
• פוקוס: Motorized zoom and focus
• Zoom: 5° - 55°
• CMY / RGBW: CMY/RGB or RGBAL
  Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4200K (red shift and thermal delay) + - Green correction function
  White light: Variable CCT 2.700K - 8.000K
• גלגל גובו 1: Static gobo wheel: 8 static, replaceable breakup gobos + open, all gobos specially selected for theatrical and TV productions, patented slot & lock system
• גלגל גובו 2: Rotating gobo wheel: 6 rotating, indexable and replaceable breakup and aerial gobos + open, all gobos specially selected for theatrical and TV productions, patented slot & lock system
• פריזמה: Prism 1: independent 6-facet linear prism rotating in both directions at variable speed | Prism 2: independent 6-facet circular prism rotating in both directions at variable speed
• גלגל אנימציה: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed
• שאטר: Framing shutters : Patented framing shutters module with 4 individually positionable blades plus rotation of the complete frame system + - 60°
• סטרוב: Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects
• תנועה: Pan movement: 540°
  Tilt movement: 270°
  Movement control: Standard and Speed
  Automatic Pan/Tilt position correction
  EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patent pending)
