פנס חכם מבוסס לד

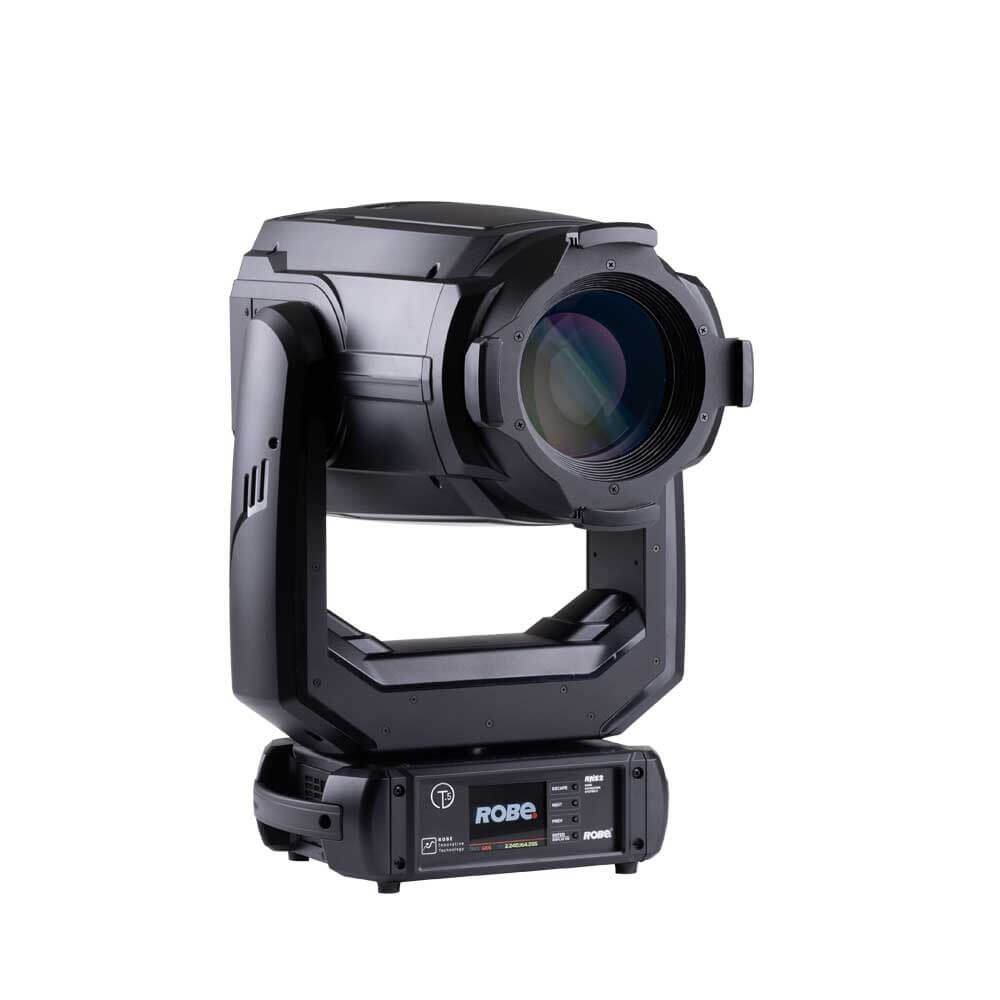

Robe - T.5 Profile

מפרט טכני

• כללי

• יצרן: Robe
• צבע גוף: Black

• חשמל

• מתח עבודה: 100-240 V, 50/60 Hz
• הספק כולל: max. 480 W

• מקור אור

• סוג נורה: MSL™ 350W Multi-Spectral LED engine (Patented
• עוצמת הארה: Fixture total lumen output:
  7,000lm (integrating sphere) 5,500lm (goniophotometer)
• אורך חיי נורה: 20.000 hours
• CRI: CRI: 95, CRI R9: 91, TM30-18 Rf: 93, TM30-18 Rg: 103, TLCI: 94
• זוית פיזור: 5° - 55°, covers favoured field angles of most Theatre and TV lights

• מידות

• רוחב: 372mm
• גובה: 645mm
• עומק: 251mm
• משקל: 20.8Kg

• שליטה

• שליטה: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
• שליטה אלחוטית: Wireless CRMX™ technology from Lumen Radio - on request
• מצבי הפעלה DMX: 49ch | 33ch | 53ch
• דימר: L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

• סביבת עבודה

• דירוג IP: IP20

• פרמטרים Moving Light

• איריס: Motorized, stepless, pulse effects up to 3 Hz
• פרוסט: MagFrost™ - magnetic paddle fast change system providing exchangeable frosts containing as standard a very light 1° for instant softening of the projected gobo or framing shutters, and a medium 5° for even wash, both specifically selected for theatre and TV us
• פוקוס: Motorised focus
• Zoom: Motorised focus
• CMY / RGBW: Colour mixing: CMY/RGB or RGBAL
  White light: Variable CCT 2.700K - 8.000K
  Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4200K (red shift and thermal delay(
  + - Green correction function
• גלגל גובו 1: Rotating gobo wheel: 7 rotating, indexable and replaceable breakup and aerial gobos + open, all gobos specially selected for theatrical and TV productions
• גלגל צבע 1: DataSwatch™ filters: pre-programmed 237 colours and tones including most used whites 2.700K, 3.200K, 4.200K, 5.600K and 8.000K
• פריזמה: 6-facet 8° prism rotating in both directions at variable speed
• גלגל אנימציה: Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed
• שאטר: Full curtain framing shutters: Patented Plano4 FC™ framing shutters module with 4 individually positionable blades plus rotation of the complete framing system +-60°
• סטרוב: Electronic strobe effect with variable speed up to 20 Hz | Pre-programmed random strobe & pulse effects
• תנועה: Pan movement: 540°
  Tilt movement: 265°
  Movement control: Standard and Speed
  Automatic Pan & Tilt position correction
  EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)
  MAPS™ - Motionless absolute positioning system for Pan and Tilt (Patented
• HOTSPOT: Hot-Spot Lens for LED profiles: from flat field to 6:1 hot-spot (optional)
